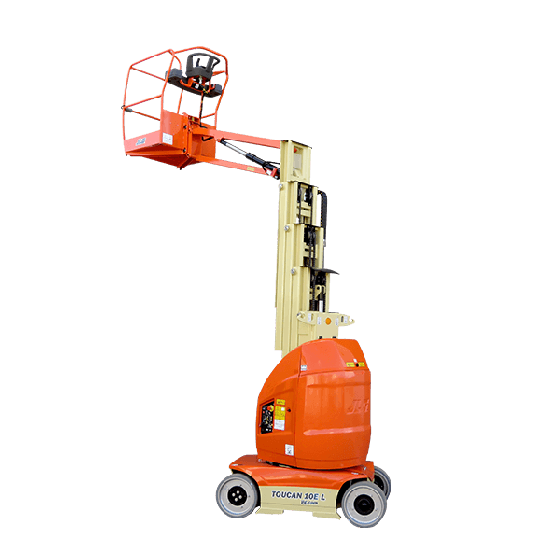

Toucan 36' 10m Electric
Toucan 36' 10m Electric.
The Toucan 10 E offers a working height of 10.1m, with an outreach of 3.08m. The unit is ideally equipped to work on the production line, around racking and in narrow congested shopping aisle. The lightweight model enables it to be used on upper floor levels for maintenance and repairs. The JLG Toucan 10 E compact dimensions makes it the ideal machine for building and factory maintenance plus stock picking in the warehouse.
Base price includes Damage Waiver and Enviro Levy when hired online.
| Length | 2.89m |
|---|---|
| Load capacity | 200kg |
| Maximum Drive Height | 4km/h |
| Overall width | 0.99m |
| Platform Height | 8.1m |
| Platform Size | 0.9 x 0.7m |
| Stowed Height | 1.99m |
| Turning Radius | 20% |
| Working Height | 10.10m |
Reach Specifications
Horizontal Outreach** 3.43 m
Up and Over Height 6.65 m
Mast Rotation 343º
Jib (Size) 1.48m
Jib (Range of Articulation) 129º (+69, -60) Vertical
Tailswing 8 cm
Wheelbase 1.30 m
Ground Clearance 8 cm
Ground Bearing Pressure**** 17.3 kg/cm²
Chassis Drive Speed 4.0 km/h
Gradeability 20%
Turning Radius - Inside Zero
Turning Radius - Outside 1.75 m
Tire Size 16 x 5 x 10.5
Tyre Type Solid Non-Marking
Horizontal Outreach** 3.43 m
Up and Over Height 6.65 m
Mast Rotation 343º
Jib (Size) 1.48m
Jib (Range of Articulation) 129º (+69, -60) Vertical
Tailswing 8 cm
Wheelbase 1.30 m
Ground Clearance 8 cm
Ground Bearing Pressure**** 17.3 kg/cm²
Chassis Drive Speed 4.0 km/h
Gradeability 20%
Turning Radius - Inside Zero
Turning Radius - Outside 1.75 m
Tire Size 16 x 5 x 10.5
Tyre Type Solid Non-Marking
