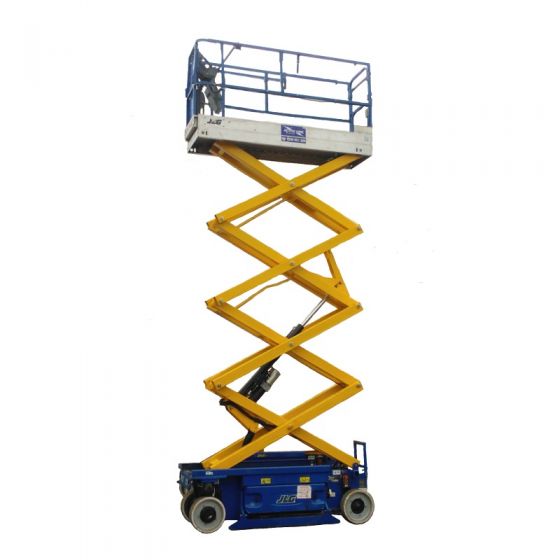

Scissor Lift 32' 9.7m Electric
32' - 9.7m Electric Scissor Lift. Electric scissor lifts are perfect for use on flat concrete surfaces, suitable for most indoor applications and some outdoor use. The have an added benefit of being able to drive at full height.
The electric scissor lifts are battery powered and have non marking tyres, perfect for working indoors where tyre marks and pollution can be an issue.
Please order safety harnesses as required.
Base price includes Damage Waiver and Environmental Levy when hired online.
Quieter, cleaner operation for a variety of environments.
Tight turning radius for easy manoeuverability.
Load capacity | 450kg / Extension 120kg |
---|---|
Platform Height | 9.68m |
Platform Size | 1.12 x 2.50 + 1.27Extension |
Stowed Height | 1.26m |
Total Length | 2.50m |
Drive Speed - Platform Elevated 0.80km/h
Drive Speed - Platform Elevated 4 km/h
Gradeability 25 %
Lift Time 45 sec.
Lower Time 60 sec.
Maximum Drive Height 9.68m
Platform Capacity - Extension 120 kg
Platform Capacity - Unrestricted 450kg
Turning Radius - Outside 2.41m
Turning Radius - Inside 0m
Dimensional Data:
Ground Clearance 0.13m
Wheelbase 2.09m
Drive Speed - Platform Elevated 4 km/h
Gradeability 25 %
Lift Time 45 sec.
Lower Time 60 sec.
Maximum Drive Height 9.68m
Platform Capacity - Extension 120 kg
Platform Capacity - Unrestricted 450kg
Turning Radius - Outside 2.41m
Turning Radius - Inside 0m
Dimensional Data:
Ground Clearance 0.13m
Wheelbase 2.09m
