Scissor Lift 19' 5.7m Electric
You may also like
Safety Harness and Lanyard
$0.00
[$22.00 / Day or $66.00 / Week]inc GST

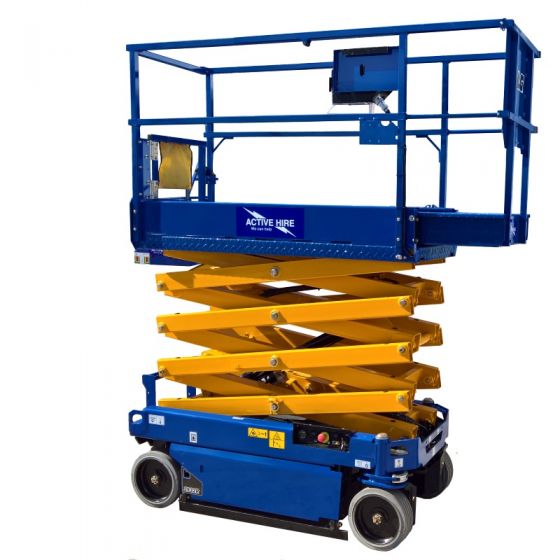

5.7m Electric Scissor Lift. Electric scissor lifts are perfect for use on flat concrete surfaces, suitable for most indoor applications and some outdoor use. The have an added benefit of being able to drive at full height.
The electric scissor lifts are battery powered and have non marking tyres, perfect for working indoors where tyre marks and pollution can be an issue.
Base price includes Damage Waiver and Environmental Levy when hired online.
Quieter, cleaner operation for a variety of environments.
Narrow width fits through most standard doorways and tight aisles .
| Load capacity | 230kg / Extension 120kg |
|---|---|
| Model | 1930ES |
| Overall width | 0.76m |
| Platform Height | 5.72m |
| Platform Size | 0.76 x 1.87 + 0.90Extension |
| Stowed Height | 2.02m |
| Total Length | 1.87m |
Drive Speed - Platform Elevated 0.80 km/h / 0 mph
Drive Speed - Platform Lowered 4.80 km/h / 3 mph
Drive System 24V Electric
Gradeability 25 %
Lift Time 20 sec.
Lower Time 30 sec.
Maximum Drive Height 5.72 m / 19 ft
Maximum Lift Height 5.72 m / 19 ft
Platform Capacity - Extension 120 kg / 265 lb
Platform Capacity - Unrestricted 230 kg / 507 lb
Turning Radius - Outside 1.75 m / 6 ft
Turning Radius - Inside 0 m / 0 ft
Dimensional Data:
Ground Clearance 0.09 m / 4 in.
Platform Railing Height 1.10 m / 4 ft
Tyre Size 32 x 10 cm
Wheelbase 1.60 m / 5 ft
Drive Speed - Platform Lowered 4.80 km/h / 3 mph
Drive System 24V Electric
Gradeability 25 %
Lift Time 20 sec.
Lower Time 30 sec.
Maximum Drive Height 5.72 m / 19 ft
Maximum Lift Height 5.72 m / 19 ft
Platform Capacity - Extension 120 kg / 265 lb
Platform Capacity - Unrestricted 230 kg / 507 lb
Turning Radius - Outside 1.75 m / 6 ft
Turning Radius - Inside 0 m / 0 ft
Dimensional Data:
Ground Clearance 0.09 m / 4 in.
Platform Railing Height 1.10 m / 4 ft
Tyre Size 32 x 10 cm
Wheelbase 1.60 m / 5 ft
Haulotte 5.7m Scissor Lift Operator Manual
