Laser Level Dual Grade

[$105.00 / Day or $420.00 / Week]inc GST
Current Store Time: 2022-08-09 10:55:25

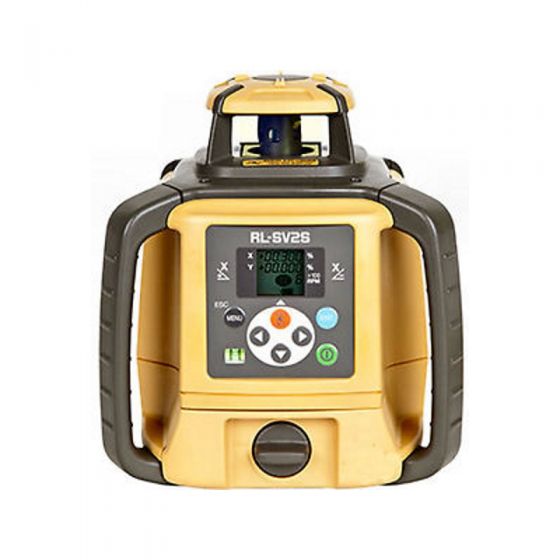

The RL-SV2S is a tool for any general construction or engineering project. It has an operating range diameter of 800m.
It is the perfect instrument anywhere a laser is required for horizontal, single slope, dual slope or vertical job applications. The laser can also be used for machine control applications.
The RL-SV2S slopes up to ±15 ° and can be used in either the X or Y axis. Designed to give the contractor versatility, it can be turned on its side and used for layout and alignment. Just lay it down on the built-on mount or attach it to a tripod and the laser will electronically self-level for fast and accurate vertical applications.
Dial-in grade setting
Grade matching (manual slope)
Hi Alert
Warning on LS (Hi alert, battery)
Electronic beam masking
Vertical setting
Vertical alignment
Remote control (range 200 m) RC-60
Accuracy ± 10 arc seconds, ±1.5 mm at 30 meters
Operating range 800m diameter
Operating time 120 hours (alkaline)
Grade ±15 % dual
Rotation speed 300, 600 rpm
Horizontal accuracy ±10 arc seconds, ±1.5 mm at 30 meters
Self-levelling range ±5°
Laser class 3A
