Excavator Mini 1.5t Complete

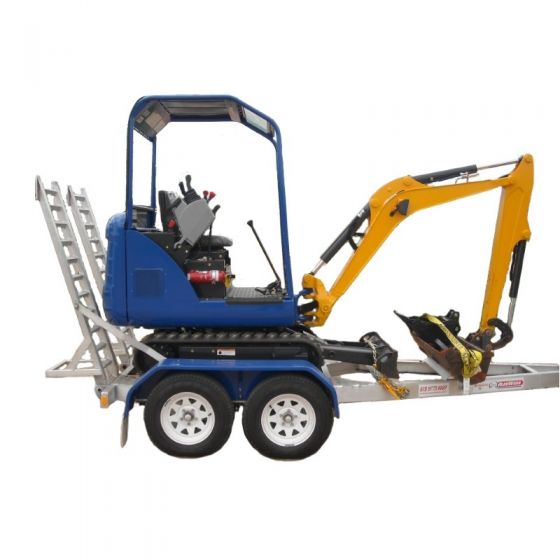

Complete on trailer with 300, 450, 900mm buckets and a ripper.
Reach further and dig deeper with the 324. Its 2.4m. dig depth and 4.2m reach deliver serious digging possibilities in tight areas, with minimal repositioning. Hydraulically retract the undercarriage to only 980mm to travel through gates or between homes, and then expand to 1363mm for a wider footprint and greater performance.
20 litres of fuel charged at end of hire if not returned full.
Base price includes Damage Waiver and Environmental Levy when hired online. Ex GST
Complete on an eazy tow trailer and includes 300, 450, 900mm buckets, ripper and fuel.
Narrow-Wide Adjustable Drive Width
On Purpose Built Eazy Tow Trailer
13.9 hp liquid-cooled diesel engine
Roomy, comfortable operator area
Self Storing Blade Extensions.
Maximum Blade Height 308 mm
Maximum Blade Depth 368 mm
Maximum Height of Working Equipment with Arm Retracted 2564 mm
Maximum Working Equipment Radius with Boom at Maximum Height 1586 mm
Maximum Reach at Ground Level 4276 mm
Maximum Radius of Working Equipment 4319 mm
Maximum Bucket Tooth Height 3743 mm
Maximum Dump Height 2656 mm
Maximum Depth of Vertical Wall which can be excavated 2310 mm
Maximum Dig Depth 2602 mm
Swing Clearance, Rear of Upper-structure 1068 mm
Tail Swing Overhang (undercarriage expanded) 384 mm
Minimum Bucket Pivot Angle 196
Slew Speed 8.4 RPM
Boom Swing (Left / Right) 80 / 60
Arm Digging Force 7909 N
Bucket Digging Force 16102 N
