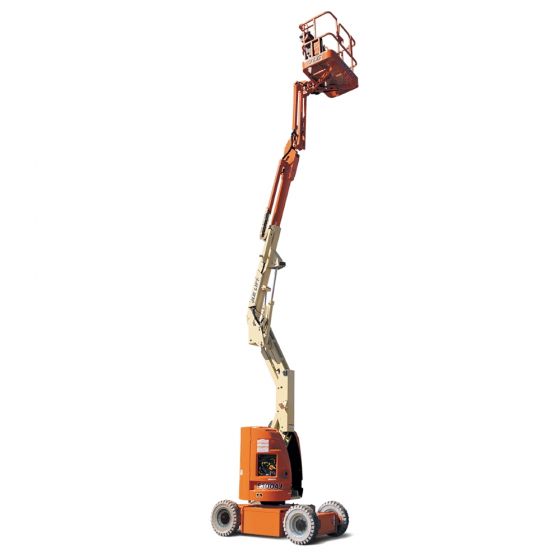

Boom Lift 30' 9.2m
You may also like
Safety Harness and Lanyard
$0.00
[$22.00 / Day or $66.00 / Week]inc GST
Electric knuckle boom lift.
1 x safety harness included.
Please order extra harnesses as required.
Base price includes Damage Waiver and Enviro Levy when hired online.
Versatility – three options and three different chassis widths to fit any workspace.
Accessibility – up and over access.
Maneuverability– move over uneven surfaces with the Automatic Traction Control.
Productivity – longer with longer duty cycles.
Environmentally friendly – zero emissions
| Length | 5.74m |
|---|---|
| Overall width | 1.22m |
| Platform Height | 8.97m |
| Platform Size | 0.76 x 1.22m |
| Stowed Height | 2.01m |
| Turning Radius | 3.10m |
| Working Height | 10.97m |
Drive Speed - Platform Lowered 4.80km/h
Gradeability - 2WD 25%
Platform Capacity 230kg
Platform Capacity - Unrestricted 226.8kg
Swing 350 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 3.10 m / 10 ft
Ground Clearance 0.1m
Tailswing 0m
Tyre Size 25 x 7 12 Non Marking Wheelbase 1.65m Horizontal Jib Rotation 180degrees
Horizontal Outreach 6.12m
Working Outreach 6.77m
Up and Over Height 4.01m
Gradeability - 2WD 25%
Platform Capacity 230kg
Platform Capacity - Unrestricted 226.8kg
Swing 350 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 3.10 m / 10 ft
Ground Clearance 0.1m
Tailswing 0m
Tyre Size 25 x 7 12 Non Marking Wheelbase 1.65m Horizontal Jib Rotation 180degrees
Horizontal Outreach 6.12m
Working Outreach 6.77m
Up and Over Height 4.01m
E300AJ Operator & Safety Manual
